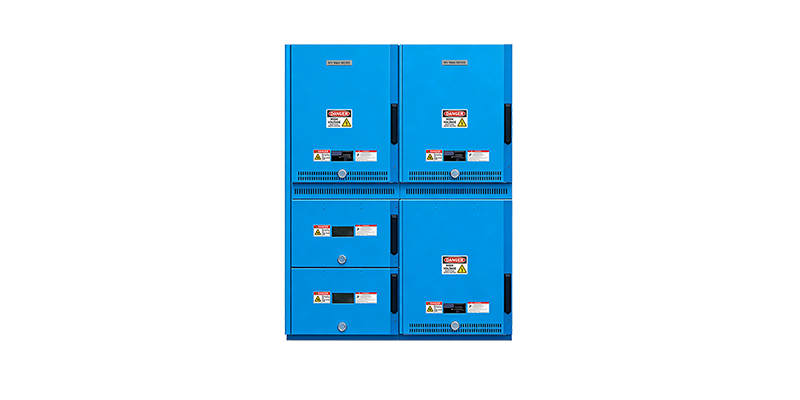

| Type | Standard (W42") |
| Rated voltage [kV] | 38 |
| Rated continuous current [A] | 1200/2000 |
| Rated short-time current (rms) [kA] | 31.5/40 |
| Power frequency withstand voltage (60Hz, 1min) [kV] | 80 |
| Lightning impulse withstand voltage (1.2×50μs) [kV] | 150 |
| Arc resistance performance [kA / sec] | / |
| Stack | 1-High |
| Seismic certified | IEEE 693 (up to 2.5g), ICC-ES AC 156 (up to 2.0g), HCAI |
| Enclosure type | NEMA Type 1 and 3R |
| Accessories & Software | Ground & Test Device, Motorized Control Racking System[MCRS] (Internal/External), VCB Lifter, Test Cabinet, Extension Rail / LS Pre-Engineering[LSPE] Software available |
| Applicable standards |
IEEE C37.20.2 ANSI C37.55 |
